SKF C 31/500 KM + AOHX 31/500 G Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 31/500 KM + AOHX 31/500 G Transparent And Fair Price On Time Delivery

SKF C 31/500 KM + AOHX 31/500 G Bearing Description

We supply various of SKF C 31/500 KM + AOHX 31/500 G bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 31/500 KM + AOHX 31/500 G bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 31/500 KM + AOHX 31/500 G bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 31/500 KM + AOHX 31/500 G bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 31/500 KM + AOHX 31/500 G bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 31/500 KM + AOHX 31/500 G bearings will be arranged timely for we have a large stock of SKF C 31/500 KM + AOHX 31/500 G bearings in HongKong.

SKF C 31/500 KM + AOHX 31/500 G Bearing Specification

Bearing number : C 31/500 KM + AOHX 31/500 G

Size (mm) : 480x830x313

Brand : The brand you need

Bore Diameter (mm) : 480

Outer Diameter (mm) : 830

Width (mm) : 313

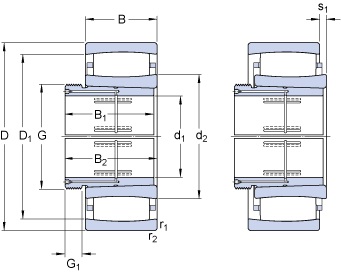

Bearing dimensions and specification in ALIER catalogue:

d₁ – 480 mm

D – 830 mm

B₁ – 313 mm

d₂ – – 605 mm

D₁ – – 738 mm

B – 264 mm

G – Tr 530×6

G₁ – 530 mm

s₁ – 75.3 mm

r_1,2 – min. – 7.5 mm

d_a – min. – 517 mm

d_a – max. – 654 mm

D_a – min. – 706 mm

D_a – max. – 798 mm

C_a – min. – -11.7 mm

r_a – max. – 6 mm

Basic dynamic load rating – C – 7500 kN

Basic static load rating – C₀ – 12700 kN

Fatigue load limit – P_u – 850 kN

Reference speed – 530 r/min

Limiting speed – 750 r/min

Factor – k₁ – 0.099

Factor – k₂ – 0.116

Mass bearing and sleeve – 615 kg
