SKF C 31/1000 KMB + AOH 31/1000 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 31/1000 KMB + AOH 31/1000 Transparent And Fair Price On Time Delivery

SKF C 31/1000 KMB + AOH 31/1000 Bearing Description

We supply various of SKF C 31/1000 KMB + AOH 31/1000 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 31/1000 KMB + AOH 31/1000 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 31/1000 KMB + AOH 31/1000 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 31/1000 KMB + AOH 31/1000 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 31/1000 KMB + AOH 31/1000 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 31/1000 KMB + AOH 31/1000 bearings will be arranged timely for we have a large stock of SKF C 31/1000 KMB + AOH 31/1000 bearings in HongKong.

SKF C 31/1000 KMB + AOH 31/1000 Bearing Specification

Bearing number : C 31/1000 KMB + AOH 31/1000

Size (mm) : 950x1580x525

Brand : The brand you need

Bore Diameter (mm) : 950

Outer Diameter (mm) : 1580

Width (mm) : 525

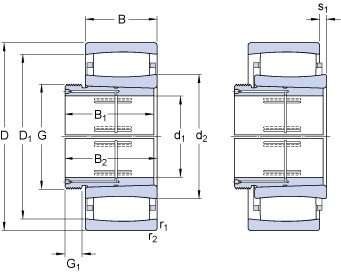

Bearing dimensions and specification in ALIER catalogue:

d₁ – 950 mm

D – 1580 mm

B₁ – 525 mm

d₂ – – 1191 mm

D₁ – – 1372 mm

B – 462 mm

B₂ – 547 mm

G – Tr 1060×8

G₁ – 63 mm

s₁ – 70.1 mm

r_1,2 – min. – 12 mm

d_a – min. – 1026 mm

d_a – max. – 1189 mm

D_a – min. – 1338 mm

D_a – max. – 1532 mm

C_a – min. – 15 mm

r_a – max. – 10 mm

Basic dynamic load rating – C – 20400 kN

Basic static load rating – C₀ – 45500 kN

Fatigue load limit – P_u – 2500 kN

Reference speed – 220 r/min

Limiting speed – 300 r/min

Factor – k₁ –

Factor – k₂ – 0.108

Mass bearing and sleeve – 3950 kg
