SKF C 3088 KMB + AOHX 3088 G Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 3088 KMB + AOHX 3088 G Transparent And Fair Price On Time Delivery

SKF C 3088 KMB + AOHX 3088 G Bearing Description

We supply various of SKF C 3088 KMB + AOHX 3088 G bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 3088 KMB + AOHX 3088 G bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 3088 KMB + AOHX 3088 G bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 3088 KMB + AOHX 3088 G bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 3088 KMB + AOHX 3088 G bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 3088 KMB + AOHX 3088 G bearings will be arranged timely for we have a large stock of SKF C 3088 KMB + AOHX 3088 G bearings in HongKong.

SKF C 3088 KMB + AOHX 3088 G Bearing Specification

Bearing number : C 3088 KMB + AOHX 3088 G

Size (mm) : 420x650x194

Brand : The brand you need

Bore Diameter (mm) : 420

Outer Diameter (mm) : 650

Width (mm) : 194

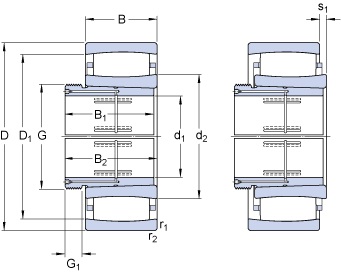

Bearing dimensions and specification in ALIER catalogue:

d₁ – 420 mm

D – 650 mm

B₁ – 194 mm

d₂ – – 490 mm

D₁ – – 587 mm

B – 157 mm

G – Tr 460×5

G₁ – 460 mm

s₁ – 24.6 mm

r_1,2 – min. – 6 mm

d_a – min. – 453 mm

d_a – max. – 489 mm

D_a – min. – 563 mm

D_a – max. – 627 mm

C_a – min. – 1.7 mm

r_a – max. – 5 mm

Basic dynamic load rating – C – 3750 kN

Basic static load rating – C₀ – 6400 kN

Fatigue load limit – P_u – 450 kN

Reference speed – 750 r/min

Limiting speed – 1000 r/min

Factor – k₁ –

Factor – k₂ – 0.105

Mass bearing and sleeve – 215 kg
