SKF C 3068 KM + AOH 3068 G Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 3068 KM + AOH 3068 G Transparent And Fair Price On Time Delivery

SKF C 3068 KM + AOH 3068 G Bearing Description

We supply various of SKF C 3068 KM + AOH 3068 G bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 3068 KM + AOH 3068 G bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 3068 KM + AOH 3068 G bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 3068 KM + AOH 3068 G bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 3068 KM + AOH 3068 G bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 3068 KM + AOH 3068 G bearings will be arranged timely for we have a large stock of SKF C 3068 KM + AOH 3068 G bearings in HongKong.

SKF C 3068 KM + AOH 3068 G Bearing Specification

Bearing number : C 3068 KM + AOH 3068 G

Size (mm) : 320x520x162

Brand : The brand you need

Bore Diameter (mm) : 320

Outer Diameter (mm) : 520

Width (mm) : 162

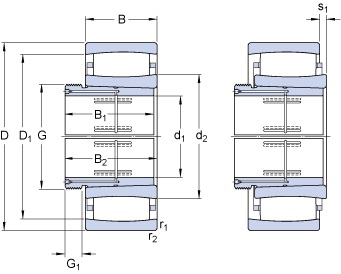

Bearing dimensions and specification in ALIER catalogue:

d₁ – 320 mm

D – 520 mm

B₁ – 162 mm

d₂ – – 394 mm

D₁ – – 475 mm

B – 133 mm

G – Tr 360×5

G₁ – 360 mm

s₁ – 25 mm

r_1,2 – min. – 5 mm

d_a – min. – 358 mm

d_a – max. – 425 mm

D_a – min. – 454 mm

D_a – max. – 502 mm

C_a – min. – 2.1 mm

r_a – max. – 4 mm

Basic dynamic load rating – C – 2900 kN

Basic static load rating – C₀ – 5000 kN

Fatigue load limit – P_u – 375 kN

Reference speed – 950 r/min

Limiting speed – 1300 r/min

Factor – k₁ – 0.12

Factor – k₂ – 0.099

Mass bearing and sleeve – 120 kg

Tags :  ALIER , 320x520x162
