SKF C 3064 KM + AOH 3064 G Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 3064 KM + AOH 3064 G Transparent And Fair Price On Time Delivery

SKF C 3064 KM + AOH 3064 G Bearing Description

We supply various of SKF C 3064 KM + AOH 3064 G bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 3064 KM + AOH 3064 G bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 3064 KM + AOH 3064 G bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 3064 KM + AOH 3064 G bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 3064 KM + AOH 3064 G bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 3064 KM + AOH 3064 G bearings will be arranged timely for we have a large stock of SKF C 3064 KM + AOH 3064 G bearings in HongKong.

SKF C 3064 KM + AOH 3064 G Bearing Specification

Bearing number : C 3064 KM + AOH 3064 G

Size (mm) : 300x480x149

Brand : The brand you need

Bore Diameter (mm) : 300

Outer Diameter (mm) : 480

Width (mm) : 149

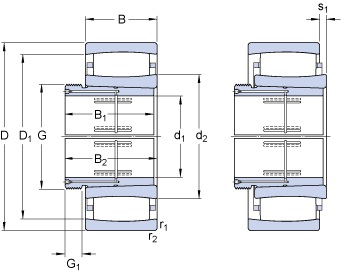

Bearing dimensions and specification in ALIER catalogue:

d₁ – 300 mm

D – 480 mm

B₁ – 149 mm

d₂ – – 375 mm

D₁ – – 441 mm

B – 121 mm

G – Tr 340×5

G₁ – 340 mm

s₁ – 23.3 mm

r_1,2 – min. – 4 mm

d_a – min. – 327 mm

d_a – max. – 398 mm

D_a – min. – 426 mm

D_a – max. – 465 mm

C_a – min. – 1.8 mm

r_a – max. – 3 mm

Basic dynamic load rating – C – 2280 kN

Basic static load rating – C₀ – 4000 kN

Fatigue load limit – P_u – 305 kN

Reference speed – 1000 r/min

Limiting speed – 1400 r/min

Factor – k₁ – 0.121

Factor – k₂ – 0.098

Mass bearing and sleeve – 93 kg

Tags :  ALIER , 300x480x149
