SKF C 3048 K + OH 3048 H Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 3048 K + OH 3048 H Transparent And Fair Price On Time Delivery

SKF C 3048 K + OH 3048 H Bearing Description

We supply various of SKF C 3048 K + OH 3048 H bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 3048 K + OH 3048 H bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 3048 K + OH 3048 H bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 3048 K + OH 3048 H bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 3048 K + OH 3048 H bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 3048 K + OH 3048 H bearings will be arranged timely for we have a large stock of SKF C 3048 K + OH 3048 H bearings in HongKong.

SKF C 3048 K + OH 3048 H Bearing Specification

Bearing number : C 3048 K + OH 3048 H

Size (mm) : 220x360x133

Brand : The brand you need

Bore Diameter (mm) : 220

Outer Diameter (mm) : 360

Width (mm) : 133

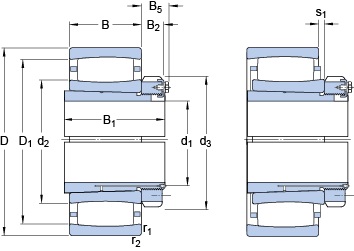

Bearing dimensions and specification in ALIER catalogue:

d₁ – 220 mm

D – 360 mm

B₁ – 133 mm

d₂ – – 276 mm

d₃ – 290 mm

D₁ – – 329 mm

B – 92 mm

B₂ – 34 mm

B₅ – 46 mm

s₁ – 19.2 mm

r_1,2 – min. – 3 mm

d_a – max. – 293 mm

d_b – min. – 251 mm

D_a – min. – 312 mm

D_a – max. – 347 mm

B_a – min. – 11 mm

C_a – min. – 1.3 mm

r_a – max. – 2.5 mm

Basic dynamic load rating – C – 1340 kN

Basic static load rating – C₀ – 2160 kN

Fatigue load limit – P_u – 183 kN

Reference speed – 1500 r/min

Limiting speed – 2000 r/min

Factor – k₁ – 0.113

Factor – k₂ – 0.106

Mass bearing and adapter sleeve – 42.5 kg

Tags :  ALIER , 220x360x133
