SKF C 3048 K + AOH 3048 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 3048 K + AOH 3048 Transparent And Fair Price On Time Delivery

SKF C 3048 K + AOH 3048 Bearing Description

We supply various of SKF C 3048 K + AOH 3048 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 3048 K + AOH 3048 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 3048 K + AOH 3048 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 3048 K + AOH 3048 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 3048 K + AOH 3048 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 3048 K + AOH 3048 bearings will be arranged timely for we have a large stock of SKF C 3048 K + AOH 3048 bearings in HongKong.

SKF C 3048 K + AOH 3048 Bearing Specification

Bearing number : C 3048 K + AOH 3048

Size (mm) : 220x360x116

Brand : The brand you need

Bore Diameter (mm) : 220

Outer Diameter (mm) : 360

Width (mm) : 116

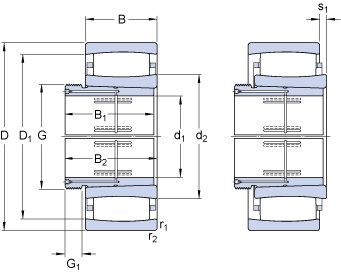

Bearing dimensions and specification in ALIER catalogue:

d₁ – 220 mm

D – 360 mm

B₁ – 116 mm

d₂ – – 276 mm

D₁ – – 329 mm

B – 92 mm

G – Tr 260×4

G₁ – 260 mm

s₁ – 19.2 mm

r_1,2 – min. – 3 mm

d_a – min. – 246 mm

d_a – max. – 293 mm

D_a – min. – 312 mm

D_a – max. – 347 mm

C_a – min. – 1.3 mm

r_a – max. – 2.5 mm

Basic dynamic load rating – C – 1340 kN

Basic static load rating – C₀ – 2160 kN

Fatigue load limit – P_u – 183 kN

Reference speed – 1500 r/min

Limiting speed – 2000 r/min

Factor – k₁ – 0.113

Factor – k₂ – 0.106

Mass bearing and sleeve – 39.5 kg
