SKF C 3030 V Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 3030 V Transparent And Fair Price On Time Delivery

SKF C 3030 V Bearing Description

We supply various of SKF C 3030 V bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 3030 V bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 3030 V bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 3030 V bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 3030 V bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 3030 V bearings will be arranged timely for we have a large stock of SKF C 3030 V bearings in HongKong.

SKF C 3030 V Bearing Specification

Bearing number : C 3030 V

Size (mm) : 150x225x56

Brand : The brand you need

Bore Diameter (mm) : 150

Outer Diameter (mm) : 225

Width (mm) : 56

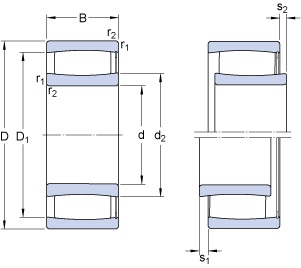

Bearing dimensions and specification in ALIER catalogue:

d – 150 mm

D – 225 mm

B – 56 mm

d₂ – – 174 mm

D₁ – – 204 mm

s₁ – 14.1 mm

s₂ – 7.3 mm

r_1,2 – min. – 2.1 mm

d_a – min. – 161 mm

d_a – max. – 190 mm

D_a – max. – 214 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 585 kN

Basic static load rating – C₀ – 960 kN

Fatigue load limit – P_u – 93 kN

Limiting speed – 1000 r/min

Factor – k₁ – 0.113

Factor – k₂ – 0.108

Mass bearing – 8 kg
