SKF C 3022 K + AHX 3122 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 3022 K + AHX 3122 Transparent And Fair Price On Time Delivery

SKF C 3022 K + AHX 3122 Bearing Description

We supply various of SKF C 3022 K + AHX 3122 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 3022 K + AHX 3122 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 3022 K + AHX 3122 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 3022 K + AHX 3122 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 3022 K + AHX 3122 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 3022 K + AHX 3122 bearings will be arranged timely for we have a large stock of SKF C 3022 K + AHX 3122 bearings in HongKong.

SKF C 3022 K + AHX 3122 Bearing Specification

Bearing number : C 3022 K + AHX 3122

Size (mm) : 105x170x68

Brand : The brand you need

Bore Diameter (mm) : 105

Outer Diameter (mm) : 170

Width (mm) : 68

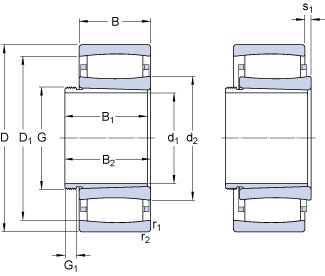

Bearing dimensions and specification in ALIER catalogue:

d₁ – 105 mm

D – 170 mm

B₁ – 68 mm

d₂ – – 128 mm

D₁ – – 156 mm

B – 45 mm

G – M 120×2

G₁ – 120 mm

s₁ – 9.5 mm

r_1,2 – min. – 2 mm

d_a – min. – 120 mm

d_a – max. – 138 mm

D_a – min. – 149 mm

D_a – max. – 160 mm

C_a – min. – 0.9 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 355 kN

Basic static load rating – C₀ – 480 kN

Fatigue load limit – P_u – 51 kN

Reference speed – 3200 r/min

Limiting speed – 4500 r/min

Factor – k₁ – 0.112

Factor – k₂ – 0.107

Mass bearing and sleeve – 4.25 kg
