SKF C 30/950 KMB + AOH 30/950 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 30/950 KMB + AOH 30/950 Transparent And Fair Price On Time Delivery

SKF C 30/950 KMB + AOH 30/950 Bearing Description

We supply various of SKF C 30/950 KMB + AOH 30/950 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 30/950 KMB + AOH 30/950 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 30/950 KMB + AOH 30/950 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 30/950 KMB + AOH 30/950 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 30/950 KMB + AOH 30/950 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 30/950 KMB + AOH 30/950 bearings will be arranged timely for we have a large stock of SKF C 30/950 KMB + AOH 30/950 bearings in HongKong.

SKF C 30/950 KMB + AOH 30/950 Bearing Specification

Bearing number : C 30/950 KMB + AOH 30/950

Size (mm) : 900x1360x355

Brand : The brand you need

Bore Diameter (mm) : 900

Outer Diameter (mm) : 1360

Width (mm) : 355

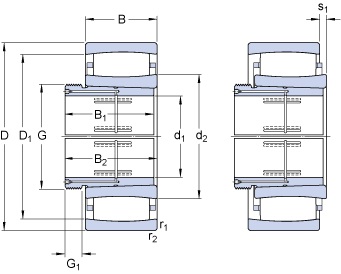

Bearing dimensions and specification in ALIER catalogue:

d₁ – 900 mm

D – 1360 mm

B₁ – 355 mm

d₂ – – 1075 mm

D₁ – – 1241 mm

B – 300 mm

G – Tr 1000×8

G₁ – 1000 mm

s₁ – 37.8 mm

r_1,2 – min. – 7.5 mm

d_a – min. – 978 mm

d_a – max. – 1073 mm

D_a – min. – 1204 mm

D_a – max. – 1332 mm

C_a – min. – 8.7 mm

r_a – max. – 6 mm

Basic dynamic load rating – C – 13200 kN

Basic static load rating – C₀ – 28500 kN

Fatigue load limit – P_u – 1600 kN

Reference speed – 280 r/min

Limiting speed – 380 r/min

Factor – k₁ –

Factor – k₂ – 0.107

Mass bearing and sleeve – 1700 kg
