SKF C 30/750 KMB + AOH 30/750 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 30/750 KMB + AOH 30/750 Transparent And Fair Price On Time Delivery

SKF C 30/750 KMB + AOH 30/750 Bearing Description

We supply various of SKF C 30/750 KMB + AOH 30/750 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 30/750 KMB + AOH 30/750 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 30/750 KMB + AOH 30/750 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 30/750 KMB + AOH 30/750 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 30/750 KMB + AOH 30/750 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 30/750 KMB + AOH 30/750 bearings will be arranged timely for we have a large stock of SKF C 30/750 KMB + AOH 30/750 bearings in HongKong.

SKF C 30/750 KMB + AOH 30/750 Bearing Specification

Bearing number : C 30/750 KMB + AOH 30/750

Size (mm) : 710x1090x300

Brand : The brand you need

Bore Diameter (mm) : 710

Outer Diameter (mm) : 1090

Width (mm) : 300

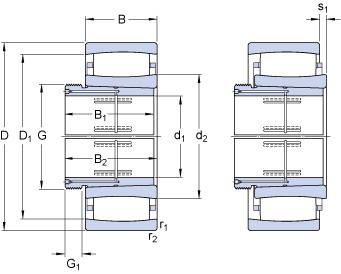

Bearing dimensions and specification in ALIER catalogue:

d₁ – 710 mm

D – 1090 mm

B₁ – 300 mm

d₂ – – 854 mm

D₁ – – 993 mm

B – 250 mm

G – Tr 800×7

G₁ – 800 mm

s₁ – 28.6 mm

r_1,2 – min. – 7.5 mm

d_a – min. – 765 mm

d_a – max. – 852 mm

D_a – min. – 961 mm

D_a – max. – 1062 mm

C_a – min. – 7.4 mm

r_a – max. – 6 mm

Basic dynamic load rating – C – 9500 kN

Basic static load rating – C₀ – 19300 kN

Fatigue load limit – P_u – 1160 kN

Reference speed – 380 r/min

Limiting speed – 530 r/min

Factor – k₁ –

Factor – k₂ – 0.11

Mass bearing and sleeve – 920 kg
