SKF C 30/560 KM + OH 30/560 H Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 30/560 KM + OH 30/560 H Transparent And Fair Price On Time Delivery

SKF C 30/560 KM + OH 30/560 H Bearing Description

We supply various of SKF C 30/560 KM + OH 30/560 H bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 30/560 KM + OH 30/560 H bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 30/560 KM + OH 30/560 H bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 30/560 KM + OH 30/560 H bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 30/560 KM + OH 30/560 H bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 30/560 KM + OH 30/560 H bearings will be arranged timely for we have a large stock of SKF C 30/560 KM + OH 30/560 H bearings in HongKong.

SKF C 30/560 KM + OH 30/560 H Bearing Specification

Bearing number : C 30/560 KM + OH 30/560 H

Size (mm) : 530x820x282

Brand : The brand you need

Bore Diameter (mm) : 530

Outer Diameter (mm) : 820

Width (mm) : 282

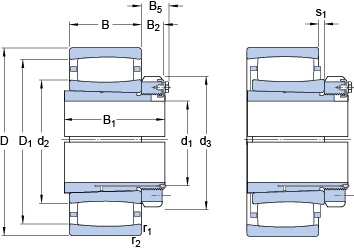

Bearing dimensions and specification in ALIER catalogue:

d₁ – 530 mm

D – 820 mm

B₁ – 282 mm

d₂ – – 659 mm

d₃ – 650 mm

D₁ – – 761 mm

B – 195 mm

B₂ – 75 mm

B₅ – 97 mm

s₁ – 45.7 mm

r_1,2 – min. – 6 mm

d_a – max. – 696 mm

d_b – min. – 582 mm

D_a – min. – 736 mm

D_a – max. – 797 mm

B_a – min. – 20 mm

C_a – min. – 2.7 mm

r_a – max. – 5 mm

Basic dynamic load rating – C – 5600 kN

Basic static load rating – C₀ – 11000 kN

Fatigue load limit – P_u – 720 kN

Reference speed – 530 r/min

Limiting speed – 750 r/min

Factor – k₁ – 0.116

Factor – k₂ – 0.106

Mass bearing and adapter sleeve – 440 kg

Tags :  ALIER , 530x820x282
