SKF C 2318 K + AHX 2318 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 2318 K + AHX 2318 Transparent And Fair Price On Time Delivery

SKF C 2318 K + AHX 2318 Bearing Description

We supply various of SKF C 2318 K + AHX 2318 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 2318 K + AHX 2318 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 2318 K + AHX 2318 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 2318 K + AHX 2318 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 2318 K + AHX 2318 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 2318 K + AHX 2318 bearings will be arranged timely for we have a large stock of SKF C 2318 K + AHX 2318 bearings in HongKong.

SKF C 2318 K + AHX 2318 Bearing Specification

Bearing number : C 2318 K + AHX 2318

Size (mm) : 85x190x79

Brand : The brand you need

Bore Diameter (mm) : 85

Outer Diameter (mm) : 190

Width (mm) : 79

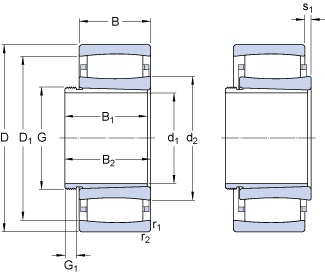

Bearing dimensions and specification in ALIER catalogue:

d₁ – 85 mm

D – 190 mm

B₁ – 79 mm

d₂ – – 119 mm

D₁ – – 166 mm

B – 64 mm

G – M 100×2

G₁ – 100 mm

s₁ – 9.6 mm

r_1,2 – min. – 3 mm

d_a – min. – 97 mm

d_a – max. – 138 mm

D_a – min. – 154 mm

D_a – max. – 176 mm

C_a – min. – 2 mm

r_a – max. – 2.5 mm

Basic dynamic load rating – C – 610 kN

Basic static load rating – C₀ – 695 kN

Fatigue load limit – P_u – 73.5 kN

Reference speed – 2800 r/min

Limiting speed – 4000 r/min

Factor – k₁ – 0.108

Factor – k₂ – 0.101

Mass bearing and sleeve – 9 kg
