SKF C 2316 K + AHX 2316 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 2316 K + AHX 2316 Transparent And Fair Price On Time Delivery

SKF C 2316 K + AHX 2316 Bearing Description

We supply various of SKF C 2316 K + AHX 2316 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 2316 K + AHX 2316 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 2316 K + AHX 2316 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 2316 K + AHX 2316 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 2316 K + AHX 2316 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 2316 K + AHX 2316 bearings will be arranged timely for we have a large stock of SKF C 2316 K + AHX 2316 bearings in HongKong.

SKF C 2316 K + AHX 2316 Bearing Specification

Bearing number : C 2316 K + AHX 2316

Size (mm) : 75x170x71

Brand : The brand you need

Bore Diameter (mm) : 75

Outer Diameter (mm) : 170

Width (mm) : 71

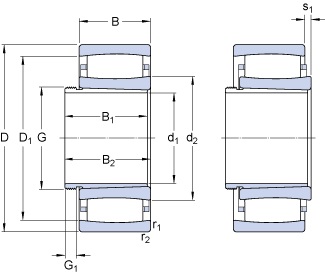

Bearing dimensions and specification in ALIER catalogue:

d₁ – 75 mm

D – 170 mm

B₁ – 71 mm

d₂ – – 102 mm

D₁ – – 146 mm

B – 58 mm

G – M 90×2

G₁ – 90 mm

s₁ – 10.1 mm

r_1,2 – min. – 2.1 mm

d_a – min. – 87 mm

d_a – max. – 119 mm

D_a – min. – 133 mm

D_a – max. – 158 mm

C_a – min. – 2.4 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 510 kN

Basic static load rating – C₀ – 550 kN

Fatigue load limit – P_u – 60 kN

Reference speed – 3400 r/min

Limiting speed – 4500 r/min

Factor – k₁ – 0.107

Factor – k₂ – 0.101

Mass bearing and sleeve – 6.75 kg
