SKF C 2314 K + AHX 2314 G Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 2314 K + AHX 2314 G Transparent And Fair Price On Time Delivery

SKF C 2314 K + AHX 2314 G Bearing Description

We supply various of SKF C 2314 K + AHX 2314 G bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 2314 K + AHX 2314 G bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 2314 K + AHX 2314 G bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 2314 K + AHX 2314 G bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 2314 K + AHX 2314 G bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 2314 K + AHX 2314 G bearings will be arranged timely for we have a large stock of SKF C 2314 K + AHX 2314 G bearings in HongKong.

SKF C 2314 K + AHX 2314 G Bearing Specification

Bearing number : C 2314 K + AHX 2314 G

Size (mm) : 65x150x64

Brand : The brand you need

Bore Diameter (mm) : 65

Outer Diameter (mm) : 150

Width (mm) : 64

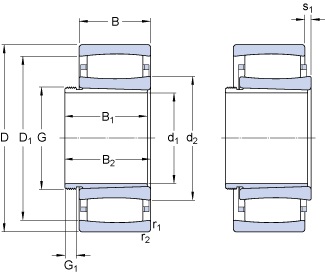

Bearing dimensions and specification in ALIER catalogue:

d₁ – 65 mm

D – 150 mm

B₁ – 64 mm

d₂ – – 91.4 mm

D₁ – – 130 mm

B – 51 mm

G – M 75×2

G₁ – 75 mm

s₁ – 9.1 mm

r_1,2 – min. – 2.1 mm

d_a – min. – 77 mm

d_a – max. – 106 mm

D_a – min. – 119 mm

D_a – max. – 138 mm

C_a – min. – 2.2 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 405 kN

Basic static load rating – C₀ – 430 kN

Fatigue load limit – P_u – 49 kN

Reference speed – 3800 r/min

Limiting speed – 5000 r/min

Factor – k₁ – 0.11

Factor – k₂ – 0.099

Mass bearing and sleeve – 4.65 kg
