SKF C 2234 K + AH 3134 G Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 2234 K + AH 3134 G Transparent And Fair Price On Time Delivery

SKF C 2234 K + AH 3134 G Bearing Description

We supply various of SKF C 2234 K + AH 3134 G bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 2234 K + AH 3134 G bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 2234 K + AH 3134 G bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 2234 K + AH 3134 G bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 2234 K + AH 3134 G bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 2234 K + AH 3134 G bearings will be arranged timely for we have a large stock of SKF C 2234 K + AH 3134 G bearings in HongKong.

SKF C 2234 K + AH 3134 G Bearing Specification

Bearing number : C 2234 K + AH 3134 G

Size (mm) : 160x310x104

Brand : The brand you need

Bore Diameter (mm) : 160

Outer Diameter (mm) : 310

Width (mm) : 104

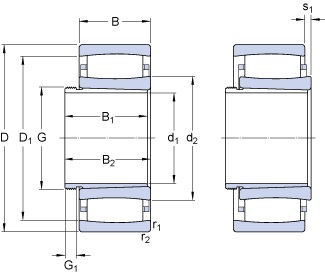

Bearing dimensions and specification in ALIER catalogue:

d₁ – 160 mm

D – 310 mm

B₁ – 104 mm

d₂ – – 209 mm

D₁ – – 274 mm

B – 86 mm

G – M 180×3

G₁ – 180 mm

s₁ – 16.4 mm

r_1,2 – min. – 4 mm

d_a – min. – 179 mm

d_a – max. – 233 mm

D_a – min. – 254 mm

D_a – max. – 293 mm

C_a – min. – 3 mm

r_a – max. – 3 mm

Basic dynamic load rating – C – 1270 kN

Basic static load rating – C₀ – 1630 kN

Fatigue load limit – P_u – 146 kN

Reference speed – 1900 r/min

Limiting speed – 2600 r/min

Factor – k₁ – 0.114

Factor – k₂ – 0.1

Mass bearing and sleeve – 31 kg
