SKF C 2228 K + AHX 3128 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 2228 K + AHX 3128 Transparent And Fair Price On Time Delivery

SKF C 2228 K + AHX 3128 Bearing Description

We supply various of SKF C 2228 K + AHX 3128 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 2228 K + AHX 3128 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 2228 K + AHX 3128 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 2228 K + AHX 3128 bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 2228 K + AHX 3128 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 2228 K + AHX 3128 bearings will be arranged timely for we have a large stock of SKF C 2228 K + AHX 3128 bearings in HongKong.

SKF C 2228 K + AHX 3128 Bearing Specification

Bearing number : C 2228 K + AHX 3128

Size (mm) : 135x250x83

Brand : The brand you need

Bore Diameter (mm) : 135

Outer Diameter (mm) : 250

Width (mm) : 83

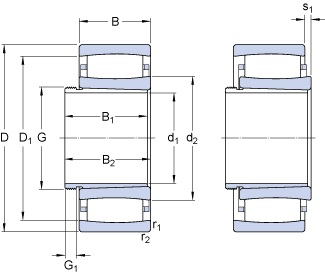

Bearing dimensions and specification in ALIER catalogue:

d₁ – 135 mm

D – 250 mm

B₁ – 83 mm

d₂ – – 173 mm

D₁ – – 223 mm

B – 68 mm

G – M 150×2

G₁ – 150 mm

s₁ – 13.7 mm

r_1,2 – min. – 3 mm

d_a – min. – 147 mm

d_a – max. – 191 mm

D_a – min. – 207 mm

D_a – max. – 236 mm

C_a – min. – 2.3 mm

r_a – max. – 2.5 mm

Basic dynamic load rating – C – 830 kN

Basic static load rating – C₀ – 1060 kN

Fatigue load limit – P_u – 102 kN

Reference speed – 2400 r/min

Limiting speed – 3200 r/min

Factor – k₁ – 0.109

Factor – k₂ – 0.108

Mass bearing and sleeve – 15.5 kg

Tags :  ALIER , 135x250x83
