SKF C 2213 KTN9 + AH 313 G Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 2213 KTN9 + AH 313 G Transparent And Fair Price On Time Delivery

SKF C 2213 KTN9 + AH 313 G Bearing Description

We supply various of SKF C 2213 KTN9 + AH 313 G bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 2213 KTN9 + AH 313 G bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 2213 KTN9 + AH 313 G bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 2213 KTN9 + AH 313 G bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 2213 KTN9 + AH 313 G bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 2213 KTN9 + AH 313 G bearings will be arranged timely for we have a large stock of SKF C 2213 KTN9 + AH 313 G bearings in HongKong.

SKF C 2213 KTN9 + AH 313 G Bearing Specification

Bearing number : C 2213 KTN9 + AH 313 G

Size (mm) : 60x120x42

Brand : The brand you need

Bore Diameter (mm) : 60

Outer Diameter (mm) : 120

Width (mm) : 42

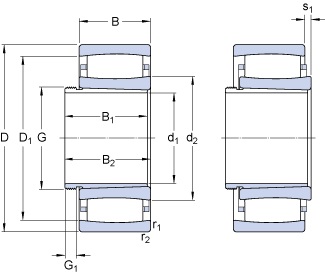

Bearing dimensions and specification in ALIER catalogue:

d₁ – 60 mm

D – 120 mm

B₁ – 42 mm

d₂ – – 79 mm

D₁ – – 106 mm

B – 31 mm

G – M 70×2

G₁ – 70 mm

s₁ – 9.6 mm

r_1,2 – min. – 1.5 mm

d_a – min. – 70.6 mm

d_a – max. – 79 mm

D_a – min. – 102 mm

D_a – max. – 111 mm

C_a – min. – 0.2 mm

r_a – max. – 1.5 mm

Basic dynamic load rating – C – 180 kN

Basic static load rating – C₀ – 180 kN

Fatigue load limit – P_u – 21.2 kN

Reference speed – 5300 r/min

Limiting speed – 7500 r/min

Factor – k₁ – 0.097

Factor – k₂ – 0.127

Mass bearing and sleeve – 1.6 kg
