SKF BTM 140 BM/HCP4CDB Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment BTM 140 BM/HCP4CDB Transparent And Fair Price On Time Delivery

SKF BTM 140 BM/HCP4CDB Bearing Description

We supply various of SKF BTM 140 BM/HCP4CDB bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF BTM 140 BM/HCP4CDB bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF BTM 140 BM/HCP4CDB bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF BTM 140 BM/HCP4CDB bearings inquire deeply into the running of the machine and friction phenomenon .SKF BTM 140 BM/HCP4CDB bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF BTM 140 BM/HCP4CDB bearings will be arranged timely for we have a large stock of SKF BTM 140 BM/HCP4CDB bearings in HongKong.

SKF BTM 140 BM/HCP4CDB Bearing Specification

Bearing number : BTM 140 BM/HCP4CDB

Size (mm) : 140x210x63

Brand : The brand you need

Bore Diameter (mm) : 140

Outer Diameter (mm) : 210

Width (mm) : 63

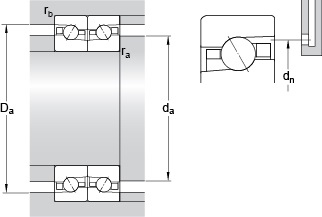

Bearing dimensions and specification in ALIER catalogue:

d – 140 mm

D – 210 mm

H – 63 mm

d₁ – 172.6 mm

D₁ – 192.1 mm

r_1,2 – min. – 2.1 mm

r_3,4 – min. – 1 mm

d_a – min. – 151 mm

D_a – max. – 205 mm

r_a – max. – 2 mm

r_b – max. – 1 mm

d_n – 168.3 mm

Basic dynamic load rating – C – 86.5 kN

Basic static load rating – C₀ – 216 kN

Fatigue load limit – P_u – 7 kN

Limiting speed for grease lubrication – 4900 r/min

Limiting speed for oil lubrication – 5800 mm/min

Preload class A – 1050 N

Preload class B – 3150 N

Static Axial rigidity, Preload class A – 821 N/micron

Static Axial rigidity, Preload class B – 1236 N/micron

G_ref – 62 cm

Mass bearing – 7.4 kg
