SKF BMO-6206/064S2/UA008A Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment BMO-6206/064S2/UA008A Transparent And Fair Price On Time Delivery

SKF BMO-6206/064S2/UA008A Bearing Description

We supply various of SKF BMO-6206/064S2/UA008A bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF BMO-6206/064S2/UA008A bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF BMO-6206/064S2/UA008A bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF BMO-6206/064S2/UA008A bearings inquire deeply into the running of the machine and friction phenomenon .SKF BMO-6206/064S2/UA008A bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF BMO-6206/064S2/UA008A bearings will be arranged timely for we have a large stock of SKF BMO-6206/064S2/UA008A bearings in HongKong.

SKF BMO-6206/064S2/UA008A Bearing Specification

Bearing number : BMO-6206/064S2/UA008A

Size (mm) : 30x62x16

Brand : The brand you need

Bore Diameter (mm) : 30

Outer Diameter (mm) : 62

Width (mm) : 16

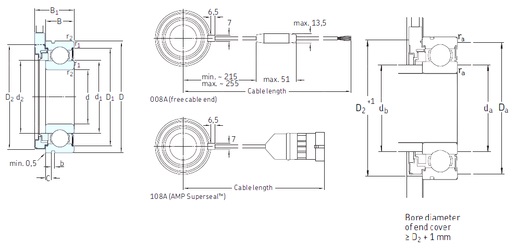

Bearing dimensions and specification in ALIER catalogue:

d – 30 mm

D – 62 mm

B – 16 mm

C – 16 mm

b – 1,9 mm

d1 – 40,4 mm

d2 – 40,25 mm

r1 min. – 1 mm

r2 min. – 1 mm

B1 – 22,2 mm

C – 3,28 mm

D1 – 54,1 mm

D2 – 58 mm

Da max. – 57 mm

da. db min. – 35 mm

db max. – 40 mm

ra max. – 1 mm

Weight – 0,24 Kg

Basic dynamic load rating (C) – 19,5 kN

Cable length ??10 – 540

Phase displacement – 90±20 °

Basic static load rating (C0) – 11,2 kN

Pulses number – 64

Fatigue load limit (Pu) – 0,475

Limiting speed – 7500 r/min

Calculation factor (f0) – 14

Calculation factor (kr) – 0,025
