SKF BMD-6206/064S2/UA008A Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment BMD-6206/064S2/UA008A Transparent And Fair Price On Time Delivery

SKF BMD-6206/064S2/UA008A Bearing Description

We supply various of SKF BMD-6206/064S2/UA008A bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF BMD-6206/064S2/UA008A bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF BMD-6206/064S2/UA008A bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF BMD-6206/064S2/UA008A bearings inquire deeply into the running of the machine and friction phenomenon .SKF BMD-6206/064S2/UA008A bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF BMD-6206/064S2/UA008A bearings will be arranged timely for we have a large stock of SKF BMD-6206/064S2/UA008A bearings in HongKong.

SKF BMD-6206/064S2/UA008A Bearing Specification

Bearing number : BMD-6206/064S2/UA008A

Size (mm) : 30x62x22,2

Brand : The brand you need

Bore Diameter (mm) : 30

Outer Diameter (mm) : 62

Width (mm) : 22,2

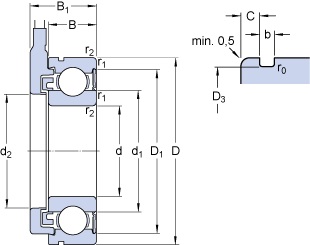

Bearing dimensions and specification in ALIER catalogue:

d – 30 mm

D – 62 mm

B₁ – 22.2 mm

B – 16 mm

d₁ – – 40.36 mm

d₂ – 37.4 mm

D₁ – – 54.1 mm

D₂ – 58.1 mm

D₃ – 59.61 mm

C – 3.28 mm

b – 1.9 mm

r₀ – 0.6 mm

r_1,2 – min. – 1 mm

L – 540 mm

Tolerance cable length L – ?? – 10 mm

d_a – min. – 35 mm

d_b – min. – 35 mm

d_b – max. – 40 mm

D_a – max. – 57 mm

r_a – max. – 1 mm

Cable connector type – Free cable end

Number of pulses per revolution – N – 64

Period accuracy – ?? 4 %

Phase shift output signal – 90 °

Tolerance phase shift output signal – ?? 30 °

Basic dynamic load rating – C – 19.5 kN

Basic static load rating – C₀ – 11.2 kN

Fatigue load limit – P_u – 0.475 kN

Limiting speed – 7500 r/min

Calculation factor – k_r – 0.025

Calculation factor – f₀ – 14

Mass sensor unit – 0.225 kg

Snap ring – SP 62

Tags :  ALIER , 30x62x22,2
