SKF BEAS 020052-2RZ Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment BEAS 020052-2RZ Transparent And Fair Price On Time Delivery

SKF BEAS 020052-2RZ Bearing Description

We supply various of SKF BEAS 020052-2RZ bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF BEAS 020052-2RZ bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF BEAS 020052-2RZ bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF BEAS 020052-2RZ bearings inquire deeply into the running of the machine and friction phenomenon .SKF BEAS 020052-2RZ bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF BEAS 020052-2RZ bearings will be arranged timely for we have a large stock of SKF BEAS 020052-2RZ bearings in HongKong.

SKF BEAS 020052-2RZ Bearing Specification

Bearing number : BEAS 020052-2RZ

Size (mm) : 20x52x28

Brand : The brand you need

Bore Diameter (mm) : 20

Outer Diameter (mm) : 52

Width (mm) : 28

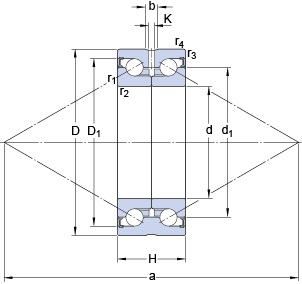

Bearing dimensions and specification in ALIER catalogue:

d – 20 mm

D – 52 mm

H – 28 mm

d₁ – 34.5 mm

D₁ – 44 mm

b – 3.1 mm

K – 3 mm

r_1,2 – min. – 0.3 mm

r_3,4 – min. – 0.6 mm

a – 74 mm

d_a – min. – 26 mm

D_a – max. – 45 mm

r_a – max. – 0.3 mm

r_b – max. – 0.6 mm

Basic dynamic load rating – C – 26 kN

Basic static load rating – C₀ – 46.5 kN

Fatigue load limit – P_u – 1.7 kN

Limiting speed – 6000 r/min

Preload – 1650 N

Frictional moment – 0.15 N??m

Static Axial rigidity – 650 N/micron

Mass bearing – 0.31 kg

Tags :  ALIER , 20x52x28
