SKF BEAM 040115-2RZ Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment BEAM 040115-2RZ Transparent And Fair Price On Time Delivery

SKF BEAM 040115-2RZ Bearing Description

We supply various of SKF BEAM 040115-2RZ bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF BEAM 040115-2RZ bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF BEAM 040115-2RZ bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF BEAM 040115-2RZ bearings inquire deeply into the running of the machine and friction phenomenon .SKF BEAM 040115-2RZ bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF BEAM 040115-2RZ bearings will be arranged timely for we have a large stock of SKF BEAM 040115-2RZ bearings in HongKong.

SKF BEAM 040115-2RZ Bearing Specification

Bearing number : BEAM 040115-2RZ

Size (mm) : 40x115x46

Brand : The brand you need

Bore Diameter (mm) : 40

Outer Diameter (mm) : 115

Width (mm) : 46

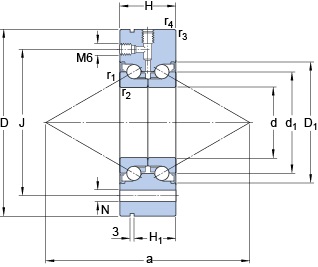

Bearing dimensions and specification in ALIER catalogue:

d – 40 mm

D – 115 mm

H – 46 mm

d₁ – 65 mm

D₁ – 80 mm

H₁ – 36 mm

r_1,2 – min. – 0.6 mm

r_3,4 – min. – 0.6 mm

a – 134 mm

J – 94 mm

H – 6.8 mm

d_a – min. – 56 mm

D_a – max. – 80 mm

r_a – max. – 0.6 mm

Basic dynamic load rating – C – 71.5 kN

Basic static load rating – C₀ – 150 kN

Fatigue load limit – P_u – 5.5 kN

Limiting speed – 3000 r/min

Preload – 4750 N

Frictional moment – 0.65 N??m

Static Axial rigidity – 1150 N/micron

Mass bearing – 2.2 kg

Required attachment bolt size – M8

Number of attachment bolts – 12

Tags :  ALIER , 40x115x46
