SKF AMS 24 ABP Bearing Description

We supply various of SKF AMS 24 ABP bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF AMS 24 ABP bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF AMS 24 ABP bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF AMS 24 ABP bearings inquire deeply into the running of the machine and friction phenomenon .SKF AMS 24 ABP bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF AMS 24 ABP bearings will be arranged timely for we have a large stock of SKF AMS 24 ABP bearings in HongKong.

SKF AMS 24 ABP Bearing Specification

Bearing number : AMS 24 ABP

Size (mm) : 76,2×177,8×39,688

Brand : The brand you need

Bore Diameter (mm) : 76,2

Outer Diameter (mm) : 177,8

Width (mm) : 39,688

Bearing dimensions and specification in ALIER catalogue:

d – 76.2 mm

D – 177.8 mm

B – 39.688 mm

d₁ – – 107.8 mm

d₂ – – 97 mm

D₁ – – 142.15 mm

a – 43 mm

r_1,2 – min. – 4 mm

r_3,4 – min. – 1.6 mm

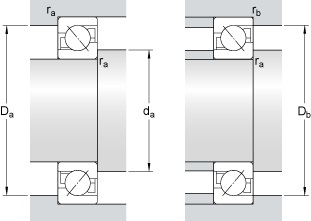

d_a – min. – 92.71 mm

D_a – max. – 164.59 mm

D_b – max. – 168 mm

r_a – max. – 4 mm

r_b – max. – 1.5 mm

Basic dynamic load rating – C – 163 kN

Basic static load rating – C₀ – 137 kN

Fatigue load limit – P_u – 5.1 kN

Reference speed – 5000 r/min

Limiting speed – 5000 r/min

Calculation factor – k_r – 0.1

Calculation factor – k_a – 1.4

Calculation factor – e – 0.57

Calculation factor – X – 0.43

Calculation factor – Y₀ – 0.42

Calculation factor – Y₁ –

Calculation factor – Y₂ – 1

Mass bearing – 5.21 kg
