SKF 7328BCBM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 7328BCBM Transparent And Fair Price On Time Delivery

SKF 7328BCBM Bearing Description

We supply various of SKF 7328BCBM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7328BCBM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7328BCBM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7328BCBM bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7328BCBM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7328BCBM bearings will be arranged timely for we have a large stock of SKF 7328BCBM bearings in HongKong.

SKF 7328BCBM Bearing Specification

Bearing number : 7328BCBM

Size (mm) : 140x300x62

Brand : The brand you need

Bore Diameter (mm) : 140

Outer Diameter (mm) : 300

Width (mm) : 62

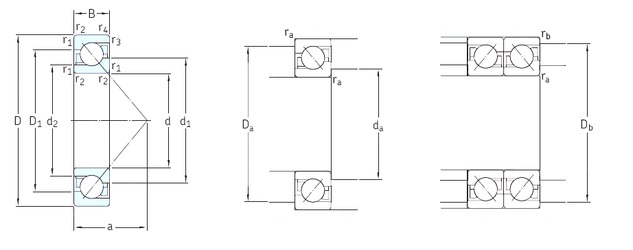

Bearing dimensions and specification in ALIER catalogue:

d – 140 mm

D – 300 mm

B – 62 mm

C – 62 mm

a – 123 mm

d1 – 203 mm

d2 – 172 mm

r1 min. – 4 mm

r2 min. – 4 mm

r3 min. – 1,5 mm

r4 min. – 1,5 mm

D1 – 243 mm

da min. – 158 mm

Da max. – 283 mm

ra max. – 3 mm

rb max. – 1,5 mm

Db max – 291 mm

Weight – 21,5 Kg

Basic dynamic load rating (C) – 302 kN

Basic static load rating (C0) – 345 kN

Fatigue load limit (Pu) – 9,8

Reference speed – 2600 r/min

Limiting speed – 2600 r/min
