SKF 7317BECBM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 7317BECBM Transparent And Fair Price On Time Delivery

SKF 7317BECBM Bearing Description

We supply various of SKF 7317BECBM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7317BECBM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7317BECBM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7317BECBM bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7317BECBM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7317BECBM bearings will be arranged timely for we have a large stock of SKF 7317BECBM bearings in HongKong.

SKF 7317BECBM Bearing Specification

Bearing number : 7317BECBM

Size (mm) : 85x180x41

Brand : The brand you need

Bore Diameter (mm) : 85

Outer Diameter (mm) : 180

Width (mm) : 41

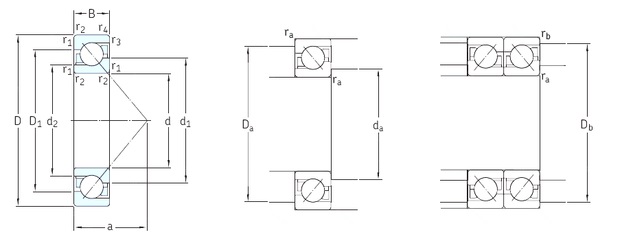

Bearing dimensions and specification in ALIER catalogue:

d – 85 mm

D – 180 mm

B – 41 mm

C – 41 mm

a – 76 mm

d1 – 122 mm

d2 – 103 mm

r1 min. – 3 mm

r2 min. – 3 mm

r3 min. – 1,1 mm

r4 min. – 1,1 mm

D1 – 145 mm

da min. – 99 mm

Da max. – 166 mm

ra max. – 2,5 mm

rb max. – 1 mm

Db max – 173 mm

Weight – 4,45 Kg

Basic dynamic load rating (C) – 156 kN

Basic static load rating (C0) – 132 kN

Fatigue load limit (Pu) – 4,9

Reference speed – 4800 r/min

Limiting speed – 4800 r/min

Tags :  ALIER , 85x180x41
