SKF 7315BECBM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 7315BECBM Transparent And Fair Price On Time Delivery

SKF 7315BECBM Bearing Description

We supply various of SKF 7315BECBM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7315BECBM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7315BECBM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7315BECBM bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7315BECBM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7315BECBM bearings will be arranged timely for we have a large stock of SKF 7315BECBM bearings in HongKong.

SKF 7315BECBM Bearing Specification

Bearing number : 7315BECBM

Size (mm) : 75x160x37

Brand : The brand you need

Bore Diameter (mm) : 75

Outer Diameter (mm) : 160

Width (mm) : 37

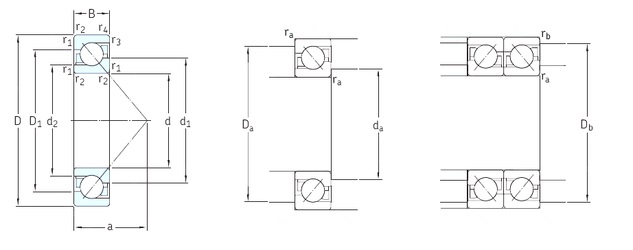

Bearing dimensions and specification in ALIER catalogue:

d – 75 mm

D – 160 mm

B – 37 mm

C – 37 mm

a – 68 mm

d1 – 108 mm

d2 – 91,1 mm

r1 min. – 2,1 mm

r2 min. – 2,1 mm

r3 min. – 1,1 mm

r4 min. – 1,1 mm

D1 – 129 mm

da min. – 87 mm

Da max. – 148 mm

ra max. – 2 mm

rb max. – 1 mm

Db max – 153 mm

Weight – 3,2 Kg

Basic dynamic load rating (C) – 132 kN

Basic static load rating (C0) – 104 kN

Fatigue load limit (Pu) – 4,15

Reference speed – 5300 r/min

Limiting speed – 5300 r/min
