SKF 7222 BEP Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 7222 BEP Transparent And Fair Price On Time Delivery

SKF 7222 BEP Bearing Description

We supply various of SKF 7222 BEP bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7222 BEP bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7222 BEP bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7222 BEP bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7222 BEP bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7222 BEP bearings will be arranged timely for we have a large stock of SKF 7222 BEP bearings in HongKong.

SKF 7222 BEP Bearing Specification

Bearing number : 7222 BEP

Size (mm) : 110x200x38

Brand : The brand you need

Bore Diameter (mm) : 110

Outer Diameter (mm) : 200

Width (mm) : 38

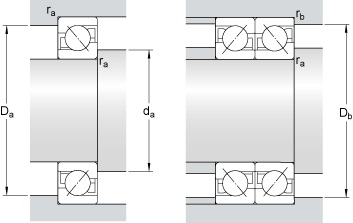

Bearing dimensions and specification in ALIER catalogue:

d – 110 mm

D – 200 mm

B – 38 mm

d₁ – – 144.85 mm

d₂ – – 127.12 mm

D₁ – – 167.35 mm

a – 84 mm

r_1,2 – min. – 2.1 mm

r_3,4 – min. – 1.1 mm

d_a – min. – 122 mm

D_a – max. – 188 mm

D_b – max. – 193 mm

r_a – max. – 2 mm

r_b – max. – 1 mm

Basic dynamic load rating – C – 163 kN

Basic static load rating – C₀ – 153 kN

Fatigue load limit – P_u – 5.2 kN

Reference speed – 3600 r/min

Limiting speed – 3600 r/min

Calculation factor – k_r – 0.095

Calculation factor – k_a – 1.4

Calculation factor – e – 1.14

Calculation factor – X – 0.57

Calculation factor – Y₀ – 0.52

Calculation factor – Y₁ – 0.55

Calculation factor – Y₂ – 0.93

Calculation factor – X – 0.35

Calculation factor – Y₀ – 0.26

Calculation factor – Y₁ –

Calculation factor – Y₂ – 0.57

Mass bearing – 4.6 kg
