SKF 7214BECBM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 7214BECBM Transparent And Fair Price On Time Delivery

SKF 7214BECBM Bearing Description

We supply various of SKF 7214BECBM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7214BECBM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7214BECBM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7214BECBM bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7214BECBM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7214BECBM bearings will be arranged timely for we have a large stock of SKF 7214BECBM bearings in HongKong.

SKF 7214BECBM Bearing Specification

Bearing number : 7214BECBM

Size (mm) : 70x125x24

Brand : The brand you need

Bore Diameter (mm) : 70

Outer Diameter (mm) : 125

Width (mm) : 24

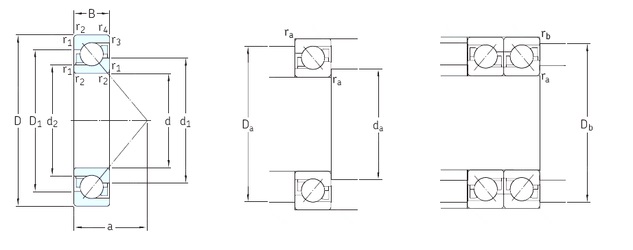

Bearing dimensions and specification in ALIER catalogue:

d – 70 mm

D – 125 mm

B – 24 mm

C – 24 mm

a – 53 mm

d1 – 91,5 mm

d2 – 80,3 mm

r1 min. – 1,5 mm

r2 min. – 1,5 mm

r3 min. – 1 mm

r4 min. – 1 mm

D1 – 105 mm

da min. – 79 mm

Da max. – 116 mm

ra max. – 1,5 mm

rb max. – 1 mm

Db max – 119 mm

Weight – 1,1 Kg

Basic dynamic load rating (C) – 72 kN

Basic static load rating (C0) – 60 kN

Fatigue load limit (Pu) – 2,55

Reference speed – 6300 r/min

Limiting speed – 6300 r/min
