SKF 71932 ACD/HCP4AH1 Bearing Description

We supply various of SKF 71932 ACD/HCP4AH1 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 71932 ACD/HCP4AH1 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 71932 ACD/HCP4AH1 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 71932 ACD/HCP4AH1 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 71932 ACD/HCP4AH1 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 71932 ACD/HCP4AH1 bearings will be arranged timely for we have a large stock of SKF 71932 ACD/HCP4AH1 bearings in HongKong.

SKF 71932 ACD/HCP4AH1 Bearing Specification

Bearing number : 71932 ACD/HCP4AH1

Size (mm) : 160x220x28

Brand : The brand you need

Bore Diameter (mm) : 160

Outer Diameter (mm) : 220

Width (mm) : 28

Bearing dimensions and specification in ALIER catalogue:

d – 160 mm

D – 220 mm

B – 28 mm

d₁ – 178.5 mm

d₂ – 178.5 mm

D₁ – 201.5 mm

K – 0.6 mm

C₁ – 7.32 mm

r_1,2 – min. – 2 mm

r_3,4 – min. – 1 mm

a – 58.5 mm

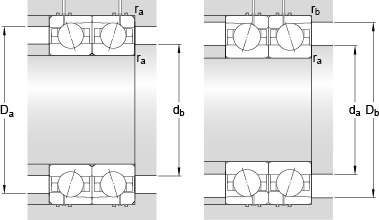

d_a – min. – 169 mm

d_b – min. – 169 mm

D_a – max. – 211 mm

D_b – max. – 215 mm

r_a – max. – 2 mm

r_b – max. – 1 mm

d_n – 183.5 mm

Basic dynamic load rating – C – 124 kN

Basic static load rating – C₀ – 153 kN

Fatigue load limit – P_u – 4.8 kN

Limiting speed for grease lubrication – 6300 r/min

Limiting speed for oil lubrication – 9500 mm/min

Ball – D_w – 19.05 mm

Ball – z – 28

G_ref – 33 cm3

Calculation factor – e – 0.68

Calculation factor – Y₂ – 0.87

Calculation factor – Y₀ – 0.38

Calculation factor – X₂ – 0.41

Calculation factor – Y₁ – 0.92

Calculation factor – Y₂ – 1.41

Calculation factor – Y₀ – 0.76

Calculation factor – X₂ – 0.67

Preload class A – G_A – 800 N

Preload class B – G_B – 1600 N

Preload class C – G_C – 3200 N

Preload class D – G_D – 6400 N

Calculation factor – f – 1.27

Calculation factor – f₁ – 0.98

Calculation factor – f_2A – 1

Calculation factor – f_2B – 1.07

Calculation factor – f_2C – 1.12

Calculation factor – f_2D – 1.17

Calculation factor – f_HC – 1.04

Preload class A – 446 N/micron

Preload class B – 588 N/micron

Preload class C – 788 N/micron

Preload class D – 1076 N/micron

Mass bearing – 2.23 kg
