SKF 7096 BM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 7096 BM Transparent And Fair Price On Time Delivery

SKF 7096 BM Bearing Description

We supply various of SKF 7096 BM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7096 BM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7096 BM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7096 BM bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7096 BM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7096 BM bearings will be arranged timely for we have a large stock of SKF 7096 BM bearings in HongKong.

SKF 7096 BM Bearing Specification

Bearing number : 7096 BM

Size (mm) : 480x700x100

Brand : The brand you need

Bore Diameter (mm) : 480

Outer Diameter (mm) : 700

Width (mm) : 100

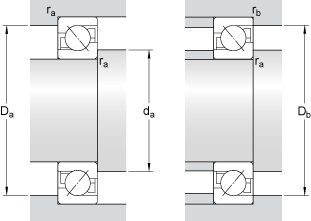

Bearing dimensions and specification in ALIER catalogue:

d – 480 mm

D – 700 mm

B – 100 mm

d₁ – – 567 mm

d₂ – – 524 mm

D₁ – – 617 mm

a – 298 mm

r_1,2 – min. – 6 mm

r_3,4 – min. – 3 mm

d_a – min. – 503 mm

D_a – max. – 677 mm

D_b – max. – 687 mm

r_a – max. – 5 mm

r_b – max. – 2.5 mm

Basic dynamic load rating – C – 624 kN

Basic static load rating – C₀ – 1340 kN

Fatigue load limit – P_u – 24 kN

Reference speed – 850 r/min

Limiting speed – 900 r/min

Calculation factor – k_r – 0.083

Calculation factor – k_a – 0.9

Calculation factor – e – 1.14

Calculation factor – X – 0.35

Calculation factor – Y₀ – 0.26

Calculation factor – Y₁ –

Calculation factor – Y₂ – 0.57

Mass bearing – 125 kg

Tags :  ALIER , 480x700x100
