SKF 7092 AM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 7092 AM Transparent And Fair Price On Time Delivery

SKF 7092 AM Bearing Description

We supply various of SKF 7092 AM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7092 AM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7092 AM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7092 AM bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7092 AM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7092 AM bearings will be arranged timely for we have a large stock of SKF 7092 AM bearings in HongKong.

SKF 7092 AM Bearing Specification

Bearing number : 7092 AM

Size (mm) : 460x680x100

Brand : The brand you need

Bore Diameter (mm) : 460

Outer Diameter (mm) : 680

Width (mm) : 100

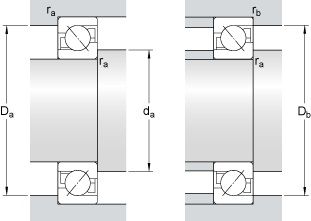

Bearing dimensions and specification in ALIER catalogue:

d – 460 mm

D – 680 mm

B – 100 mm

d₁ – – 547 mm

d₂ – – 505 mm

D₁ – – 599 mm

a – 215 mm

r_1,2 – min. – 6 mm

r_3,4 – min. – 3 mm

d_a – min. – 483 mm

D_a – max. – 657 mm

D_b – max. – 667 mm

r_a – max. – 5 mm

r_b – max. – 2.5 mm

Basic dynamic load rating – C – 689 kN

Basic static load rating – C₀ – 1460 kN

Fatigue load limit – P_u – 25.5 kN

Reference speed – 950 r/min

Limiting speed – 1000 r/min

Calculation factor – k_r – 0.085

Calculation factor – k_a – 0.5

Calculation factor – e – 0.8

Calculation factor – X – 0.39

Calculation factor – Y₀ – 0.33

Calculation factor – Y₁ –

Calculation factor – Y₂ – 0.76

Mass bearing – 120 kg

Tags :  ALIER , 460x680x100
