SKF 7072 BGM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 7072 BGM Transparent And Fair Price On Time Delivery

SKF 7072 BGM Bearing Description

We supply various of SKF 7072 BGM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7072 BGM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7072 BGM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7072 BGM bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7072 BGM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7072 BGM bearings will be arranged timely for we have a large stock of SKF 7072 BGM bearings in HongKong.

SKF 7072 BGM Bearing Specification

Bearing number : 7072 BGM

Size (mm) : 360x540x82

Brand : The brand you need

Bore Diameter (mm) : 360

Outer Diameter (mm) : 540

Width (mm) : 82

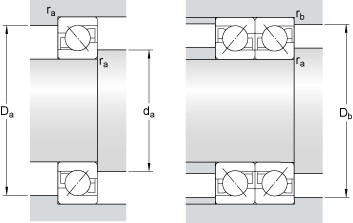

Bearing dimensions and specification in ALIER catalogue:

d – 360 mm

D – 540 mm

B – 82 mm

d₁ – – 431.205 mm

d₂ – – 398.625 mm

D₁ – – 472.5 mm

a – 230 mm

r_1,2 – min. – 5 mm

r_3,4 – min. – 2 mm

d_a – min. – 378 mm

D_a – max. – 522 mm

D_b – max. – 531 mm

r_a – max. – 4 mm

r_b – max. – 2 mm

Basic dynamic load rating – C – 462 kN

Basic static load rating – C₀ – 850 kN

Fatigue load limit – P_u – 17 kN

Reference speed – 1200 r/min

Limiting speed – 1200 r/min

Calculation factor – k_r – 0.083

Calculation factor – k_a – 0.9

Calculation factor – e – 1.14

Calculation factor – X – 0.57

Calculation factor – Y₀ – 0.52

Calculation factor – Y₁ – 0.55

Calculation factor – Y₂ – 0.93

Calculation factor – X – 0.35

Calculation factor – Y₀ – 0.26

Calculation factor – Y₁ –

Calculation factor – Y₂ – 0.57

Mass bearing – 61.8 kg
