SKF 7034 BGM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 7034 BGM Transparent And Fair Price On Time Delivery

SKF 7034 BGM Bearing Description

We supply various of SKF 7034 BGM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7034 BGM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7034 BGM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7034 BGM bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7034 BGM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7034 BGM bearings will be arranged timely for we have a large stock of SKF 7034 BGM bearings in HongKong.

SKF 7034 BGM Bearing Specification

Bearing number : 7034 BGM

Size (mm) : 170x260x42

Brand : The brand you need

Bore Diameter (mm) : 170

Outer Diameter (mm) : 260

Width (mm) : 42

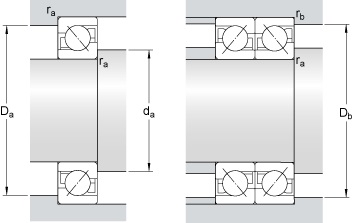

Bearing dimensions and specification in ALIER catalogue:

d – 170 mm

D – 260 mm

B – 42 mm

d₁ – – 205.5 mm

d₂ – – 189.75 mm

D₁ – – 226.75 mm

a – 111 mm

r_1,2 – min. – 2.1 mm

r_3,4 – min. – 1.1 mm

d_a – min. – 182 mm

D_a – max. – 248 mm

D_b – max. – 253 mm

r_a – max. – 2 mm

r_b – max. – 1 mm

Basic dynamic load rating – C – 172 kN

Basic static load rating – C₀ – 204 kN

Fatigue load limit – P_u – 5.8 kN

Reference speed – 2600 r/min

Limiting speed – 2800 r/min

Calculation factor – k_r – 0.083

Calculation factor – k_a – 0.9

Calculation factor – e – 1.14

Calculation factor – X – 0.57

Calculation factor – Y₀ – 0.52

Calculation factor – Y₁ – 0.55

Calculation factor – Y₂ – 0.93

Calculation factor – X – 0.35

Calculation factor – Y₀ – 0.26

Calculation factor – Y₁ –

Calculation factor – Y₂ – 0.57

Mass bearing – 7.65 kg
