SKF 7026 CD/P4AL Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 7026 CD/P4AL Transparent And Fair Price On Time Delivery

SKF 7026 CD/P4AL Bearing Description

We supply various of SKF 7026 CD/P4AL bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7026 CD/P4AL bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7026 CD/P4AL bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7026 CD/P4AL bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7026 CD/P4AL bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7026 CD/P4AL bearings will be arranged timely for we have a large stock of SKF 7026 CD/P4AL bearings in HongKong.

SKF 7026 CD/P4AL Bearing Specification

Bearing number : 7026 CD/P4AL

Size (mm) : 130x200x33

Brand : The brand you need

Bore Diameter (mm) : 130

Outer Diameter (mm) : 200

Width (mm) : 33

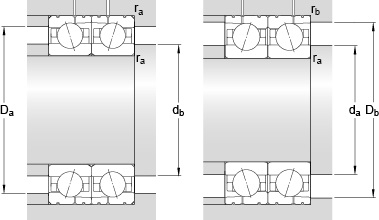

Bearing dimensions and specification in ALIER catalogue:

d – 130 mm

D – 200 mm

B – 33 mm

d₁ – 151.6 mm

d₂ – 151.6 mm

D₁ – 178.4 mm

b – 3.1 mm

C₁ – 17.9 mm

C₂ – 6.6 mm

C₃ – 5.6 mm

r_1,2 – min. – 2 mm

r_3,4 – min. – 1 mm

a – 38.7 mm

d_a – min. – 139 mm

d_b – min. – 139 mm

D_a – max. – 191 mm

D_b – max. – 195 mm

r_a – max. – 2 mm

r_b – max. – 1 mm

d_n – 156.4 mm

Basic dynamic load rating – C – 148 kN

Basic static load rating – C₀ – 156 kN

Fatigue load limit – P_u – 5.2 kN

Limiting speed for grease lubrication – 7000 r/min

Limiting speed for oil lubrication – 10000 mm/min

Ball – D_w – 22.225 mm

Ball – z – 21

G_ref – 42 cm3

Calculation factor – f₀ – 15.6

Preload class A – G_A – 560 N

Preload class B – G_B – 1120 N

Preload class C – G_C – 2240 N

Preload class D – G_D – 4480 N

Calculation factor – f – 1.15

Calculation factor – f₁ – 1

Calculation factor – f_2A – 1

Calculation factor – f_2B – 1.02

Calculation factor – f_2C – 1.05

Calculation factor – f_2D – 1.09

Calculation factor – f_HC – 1

Preload class A – 145 N/micron

Preload class B – 198 N/micron

Preload class C – 277 N/micron

Preload class D – 400 N/micron

Mass bearing – 3.234 kg
