SKF 7019 ACD/HCP4A Bearing Description

We supply various of SKF 7019 ACD/HCP4A bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 7019 ACD/HCP4A bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 7019 ACD/HCP4A bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 7019 ACD/HCP4A bearings inquire deeply into the running of the machine and friction phenomenon .SKF 7019 ACD/HCP4A bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 7019 ACD/HCP4A bearings will be arranged timely for we have a large stock of SKF 7019 ACD/HCP4A bearings in HongKong.

SKF 7019 ACD/HCP4A Bearing Specification

Bearing number : 7019 ACD/HCP4A

Size (mm) : 95x145x24

Brand : The brand you need

Bore Diameter (mm) : 95

Outer Diameter (mm) : 145

Width (mm) : 24

Bearing dimensions and specification in ALIER catalogue:

d – 95 mm

D – 145 mm

B – 24 mm

d₁ – 110.4 mm

d₂ – 110.4 mm

D₁ – 129.6 mm

r_1,2 – min. – 1.5 mm

r_3,4 – min. – 1 mm

a – 40.1 mm

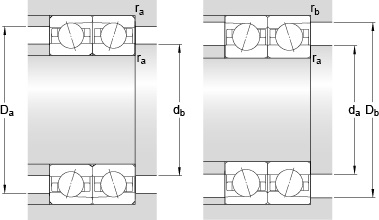

d_a – min. – 102 mm

d_b – min. – 102 mm

D_a – max. – 138 mm

D_b – max. – 141 mm

r_a – max. – 1.5 mm

r_b – max. – 1 mm

d_n – 113.7 mm

Basic dynamic load rating – C – 76.1 kN

Basic static load rating – C₀ – 76.5 kN

Fatigue load limit – P_u – 2.9 kN

Limiting speed for grease lubrication – 10000 r/min

Limiting speed for oil lubrication – 16000 mm/min

Ball – D_w – 15.875 mm

Ball – z – 21

G_ref – 15.6 cm3

Calculation factor – e – 0.68

Calculation factor – Y₂ – 0.87

Calculation factor – Y₀ – 0.38

Calculation factor – X₂ – 0.41

Calculation factor – Y₁ – 0.92

Calculation factor – Y₂ – 1.41

Calculation factor – Y₀ – 0.76

Calculation factor – X₂ – 0.67

Preload class A – G_A – 480 N

Preload class B – G_B – 960 N

Preload class C – G_C – 1920 N

Preload class D – G_D – 3840 N

Calculation factor – f – 1.15

Calculation factor – f₁ – 0.99

Calculation factor – f_2A – 1

Calculation factor – f_2B – 1.02

Calculation factor – f_2C – 1.05

Calculation factor – f_2D – 1.08

Calculation factor – f_HC – 1.02

Preload class A – 286 N/micron

Preload class B – 374 N/micron

Preload class C – 497 N/micron

Preload class D – 673 N/micron

Mass bearing – 1.003 kg
