SKF 6413NR Bearing Description

We supply various of SKF 6413NR bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 6413NR bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 6413NR bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 6413NR bearings inquire deeply into the running of the machine and friction phenomenon .SKF 6413NR bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 6413NR bearings will be arranged timely for we have a large stock of SKF 6413NR bearings in HongKong.

SKF 6413NR Bearing Specification

Bearing number : 6413NR

Size (mm) : 65x160x37

Brand : The brand you need

Bore Diameter (mm) : 65

Outer Diameter (mm) : 160

Width (mm) : 37

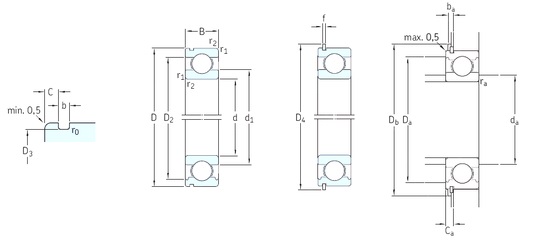

Bearing dimensions and specification in ALIER catalogue:

d – 65 mm

D – 160 mm

B – 37 mm

C – 37 mm

b – 3,1 mm

d1 – 94 mm

f – 2,82 mm

r0 max. – 0,6 mm

r1 min. – 2,1 mm

r2 min. – 2,1 mm

C – 4,9 mm

D2 – 131 mm

D3 – 155,22 mm

D4 – 169,7 mm

Ca max. – 7,72 mm

da min. – 3,5 mm

da max – 79 mm

Da max. – 146 mm

Db min. – 172 mm

ra max. – 2 mm

Weight – 3,35 Kg

Basic dynamic load rating (C) – 119 kN

Basic static load rating (C0) – 78 kN

Fatigue load limit (Pu) – 3,15

Reference speed – 9500 r/min

Limiting speed – 6000 r/min

Calculation factor (f0) – 12

Calculation factor (kr) – 0,035
