SKF 6412N Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 6412N Transparent And Fair Price On Time Delivery

SKF 6412N Bearing Description

We supply various of SKF 6412N bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 6412N bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 6412N bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 6412N bearings inquire deeply into the running of the machine and friction phenomenon .SKF 6412N bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 6412N bearings will be arranged timely for we have a large stock of SKF 6412N bearings in HongKong.

SKF 6412N Bearing Specification

Bearing number : 6412N

Size (mm) : 60x150x35

Brand : The brand you need

Bore Diameter (mm) : 60

Outer Diameter (mm) : 150

Width (mm) : 35

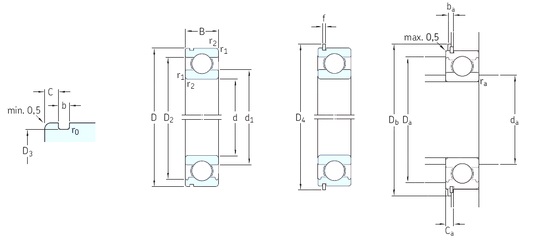

Bearing dimensions and specification in ALIER catalogue:

d – 60 mm

D – 150 mm

B – 35 mm

C – 35 mm

b – 3,1 mm

d1 – 88,1 mm

r0 max. – 0,6 mm

r1 min. – 2,1 mm

r2 min. – 2,1 mm

C – 4,9 mm

D2 – 122 mm

D3 – 145,24 mm

D4 – 159,7 mm

Ca max. – 7,72 mm

da min. – 3,5 mm

da max – 74 mm

Da max. – 136 mm

Db min. – 162 mm

ra max. – 2 mm

Weight – 2,8 Kg

Basic dynamic load rating (C) – 108 kN

Basic static load rating (C0) – 69,5 kN

Fatigue load limit (Pu) – 2,9

Reference speed – 10000 r/min

Limiting speed – 6300 r/min

Calculation factor (f0) – 12

Calculation factor (kr) – 0,035

Tags :  ALIER , 60x150x35
