SKF 6022NR Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 6022NR Transparent And Fair Price On Time Delivery

SKF 6022NR Bearing Description

We supply various of SKF 6022NR bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 6022NR bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 6022NR bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 6022NR bearings inquire deeply into the running of the machine and friction phenomenon .SKF 6022NR bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 6022NR bearings will be arranged timely for we have a large stock of SKF 6022NR bearings in HongKong.

SKF 6022NR Bearing Specification

Bearing number : 6022NR

Size (mm) : 110x170x28

Brand : The brand you need

Bore Diameter (mm) : 110

Outer Diameter (mm) : 170

Width (mm) : 28

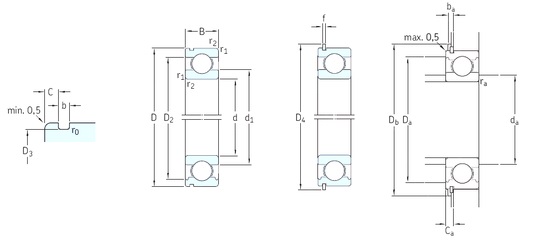

Bearing dimensions and specification in ALIER catalogue:

d – 110 mm

D – 170 mm

B – 28 mm

C – 28 mm

b – 3,5 mm

d1 – 129 mm

f – 3,1 mm

r0 max. – 0,6 mm

r1 min. – 2 mm

r2 min. – 2 mm

C – 3,71 mm

D2 – 156 mm

D3 – 163,65 mm

D4 – 182,9 mm

Ca max. – 6,81 mm

da min. – 4 mm

da max – 119 mm

Da max. – 161 mm

Db min. – 185 mm

ra max. – 2 mm

Weight – 1,95 Kg

Basic dynamic load rating (C) – 85,2 kN

Basic static load rating (C0) – 73,5 kN

Fatigue load limit (Pu) – 2,6

Reference speed – 8000 r/min

Limiting speed – 5000 r/min

Calculation factor (f0) – 16

Calculation factor (kr) – 0,025
