SKF 51248M Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 51248M Transparent And Fair Price On Time Delivery

SKF 51248M Bearing Description

We supply various of SKF 51248M bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 51248M bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 51248M bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 51248M bearings inquire deeply into the running of the machine and friction phenomenon .SKF 51248M bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 51248M bearings will be arranged timely for we have a large stock of SKF 51248M bearings in HongKong.

SKF 51248M Bearing Specification

Bearing number : 51248M

Size (mm) : 240x340x78

Brand : The brand you need

Bore Diameter (mm) : 240

Outer Diameter (mm) : 340

Width (mm) : 78

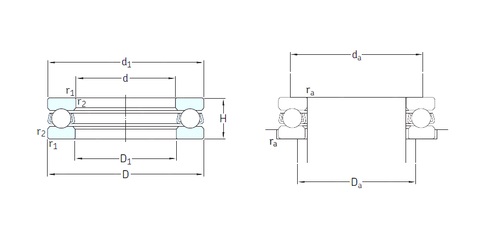

Bearing dimensions and specification in ALIER catalogue:

d – 240 mm

D – 340 mm

H – 78 mm

d1 – 335 mm

r1 min. – 2,1 mm

r2 min. – 2,1 mm

D1 – 244 mm

da min. – 299 mm

Da max. – 281 mm

ra max. – 2 mm

Weight – 23 Kg

Basic dynamic load rating (C) – 449 kN

Basic static load rating (C0) – 1 960 kN

Fatigue load limit (Pu) – 42,5

Reference speed – 800 r/min

Limiting speed – 1100 r/min

Minimum load factor (A) – 21
