SKF 51228 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 51228 Transparent And Fair Price On Time Delivery

SKF 51228 Bearing Description

We supply various of SKF 51228 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 51228 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 51228 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 51228 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 51228 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 51228 bearings will be arranged timely for we have a large stock of SKF 51228 bearings in HongKong.

SKF 51228 Bearing Specification

Bearing number : 51228

Size (mm) : 140x200x46

Brand : The brand you need

Bore Diameter (mm) : 140

Outer Diameter (mm) : 200

Width (mm) : 46

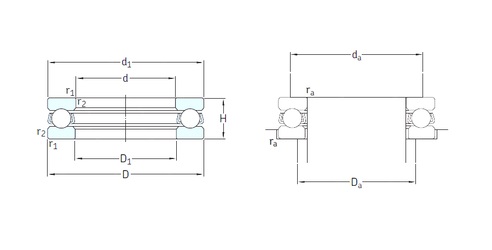

Bearing dimensions and specification in ALIER catalogue:

d – 140 mm

D – 200 mm

H – 46 mm

d1 – 197 mm

r1 min. – 1,5 mm

r2 min. – 1,5 mm

D1 – 143 mm

da min. – 176 mm

Da max. – 164 mm

ra max. – 1,5 mm

Weight – 4,35 Kg

Basic dynamic load rating (C) – 190 kN

Basic static load rating (C0) – 620 kN

Fatigue load limit (Pu) – 17,6

Reference speed – 1400 r/min

Limiting speed – 1900 r/min

Minimum load factor (A) – 2
