SKF 51226 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 51226 Transparent And Fair Price On Time Delivery

SKF 51226 Bearing Description

We supply various of SKF 51226 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 51226 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 51226 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 51226 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 51226 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 51226 bearings will be arranged timely for we have a large stock of SKF 51226 bearings in HongKong.

SKF 51226 Bearing Specification

Bearing number : 51226

Size (mm) : 130x190x45

Brand : The brand you need

Bore Diameter (mm) : 130

Outer Diameter (mm) : 190

Width (mm) : 45

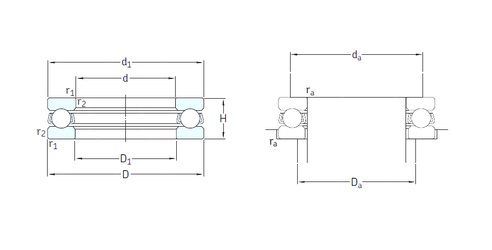

Bearing dimensions and specification in ALIER catalogue:

d – 130 mm

D – 190 mm

H – 45 mm

d1 – 187 mm

r1 min. – 1,5 mm

r2 min. – 1,5 mm

D1 – 133 mm

da min. – 166 mm

Da max. – 154 mm

ra max. – 1,5 mm

Weight – 4 Kg

Basic dynamic load rating (C) – 186 kN

Basic static load rating (C0) – 585 kN

Fatigue load limit (Pu) – 17

Reference speed – 1400 r/min

Limiting speed – 2000 r/min

Minimum load factor (A) – 1,8

Tags :  ALIER , 130x190x45
