SKF 51164M Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 51164M Transparent And Fair Price On Time Delivery

SKF 51164M Bearing Description

We supply various of SKF 51164M bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 51164M bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 51164M bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 51164M bearings inquire deeply into the running of the machine and friction phenomenon .SKF 51164M bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 51164M bearings will be arranged timely for we have a large stock of SKF 51164M bearings in HongKong.

SKF 51164M Bearing Specification

Bearing number : 51164M

Size (mm) : 320x400x63

Brand : The brand you need

Bore Diameter (mm) : 320

Outer Diameter (mm) : 400

Width (mm) : 63

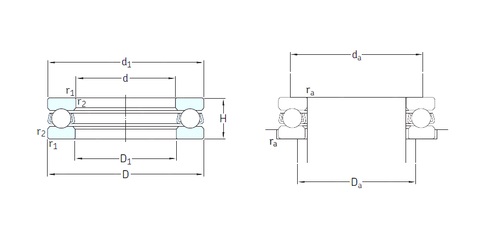

Bearing dimensions and specification in ALIER catalogue:

d – 320 mm

D – 400 mm

H – 63 mm

d1 – 396 mm

r1 min. – 2 mm

r2 min. – 2 mm

D1 – 324 mm

da min. – 368 mm

Da max. – 352 mm

ra max. – 2 mm

Weight – 19 Kg

Basic dynamic load rating (C) – 371 kN

Basic static load rating (C0) – 1 860 kN

Fatigue load limit (Pu) – 36,5

Reference speed – 800 r/min

Limiting speed – 1100 r/min

Minimum load factor (A) – 18
