SKF 511/560F Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 511/560F Transparent And Fair Price On Time Delivery

SKF 511/560F Bearing Description

We supply various of SKF 511/560F bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 511/560F bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 511/560F bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 511/560F bearings inquire deeply into the running of the machine and friction phenomenon .SKF 511/560F bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 511/560F bearings will be arranged timely for we have a large stock of SKF 511/560F bearings in HongKong.

SKF 511/560F Bearing Specification

Bearing number : 511/560F

Size (mm) : 560x670x85

Brand : The brand you need

Bore Diameter (mm) : 560

Outer Diameter (mm) : 670

Width (mm) : 85

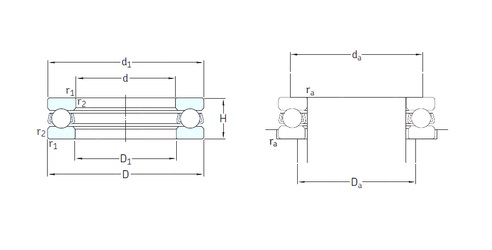

Bearing dimensions and specification in ALIER catalogue:

d – 560 mm

D – 670 mm

H – 85 mm

d1 – 666 mm

r1 min. – 3 mm

r2 min. – 3 mm

D1 – 564 mm

da min. – 625 mm

Da max. – 606 mm

ra max. – 2,5 mm

Weight – 61 Kg

Basic dynamic load rating (C) – 650 kN

Basic static load rating (C0) – 4 650 kN

Fatigue load limit (Pu) – 68

Reference speed – 500 r/min

Limiting speed – 700 r/min

Minimum load factor (A) – 110
