SKF 464777 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 464777 Transparent And Fair Price On Time Delivery

SKF 464777 Bearing Description

We supply various of SKF 464777 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 464777 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 464777 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 464777 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 464777 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 464777 bearings will be arranged timely for we have a large stock of SKF 464777 bearings in HongKong.

SKF 464777 Bearing Specification

Bearing number : 464777

Size (mm) : 660,4×863,6×107,95

Brand : The brand you need

Bore Diameter (mm) : 660,4

Outer Diameter (mm) : 863,6

Width (mm) : 107,95

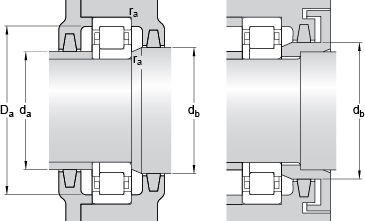

Bearing dimensions and specification in ALIER catalogue:

d – 660.4 mm

D – 863.6 mm

B – 107.95 mm

d₁ – – 728 mm

D₁ – – 804 mm

F – 704 mm

r_1,2 – min. – 5 mm

d_a – min. – 680 mm

d_b – min. – 734 mm

D_a – max. – 643 mm

r_a – max. – 4 mm

Basic dynamic load rating – C – 3080 kN

Basic static load rating – C₀ – 6550 kN

Fatigue load limit – P_u – 455 kN

Reference speed – 560 r/min

Limiting speed – 670 r/min

Calculation factor – k_r – 0.11

Mass bearing – 173 kg
