SKF 4580/2/4535/2/Q Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 4580/2/4535/2/Q Transparent And Fair Price On Time Delivery

SKF 4580/2/4535/2/Q Bearing Description

We supply various of SKF 4580/2/4535/2/Q bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 4580/2/4535/2/Q bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 4580/2/4535/2/Q bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 4580/2/4535/2/Q bearings inquire deeply into the running of the machine and friction phenomenon .SKF 4580/2/4535/2/Q bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 4580/2/4535/2/Q bearings will be arranged timely for we have a large stock of SKF 4580/2/4535/2/Q bearings in HongKong.

SKF 4580/2/4535/2/Q Bearing Specification

Bearing number : 4580/2/4535/2/Q

Size (mm) : 50.8×104.775×39.688

Brand : The brand you need

Bore Diameter (mm) : 50,8

Outer Diameter (mm) : 104,775

Width (mm) : 39,688

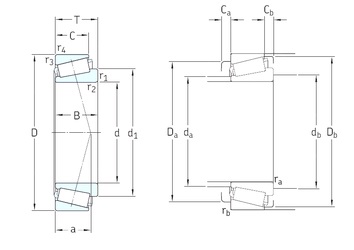

Bearing dimensions and specification in ALIER catalogue:

d – 50,8 mm

D – 104,775 mm

T – 39,688 mm

B – 40,157 mm

C – 33,338 mm

a – 27 mm

d1 – 79,5 mm

r1 min. – 3,5 mm

r2 min. – 3,5 mm

r3 min. – 3,3 mm

r4 min. – 3,3 mm

Ca min. – 5 mm

Cb min. – 6 mm

da max – 65 mm

Da min – 87 mm

Da max. – 92,5 mm

db min – 62 mm

Db min. – 98 mm

ra max. – 3,3 mm

rb max. – 3,1 mm

Weight – 1,65 Kg

Basic dynamic load rating (C) – 187 kN

Basic static load rating (C0) – 285 kN

Fatigue load limit (Pu) – 32

Reference speed – 4800 r/min

Limiting speed – 7000 r/min

Calculation factor (e) – 0,33

Calculation factor (Y) – 1,8

Calculation factor (Y0) – 1
