SKF 3320A Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 3320A Transparent And Fair Price On Time Delivery

SKF 3320A Bearing Description

We supply various of SKF 3320A bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 3320A bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 3320A bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 3320A bearings inquire deeply into the running of the machine and friction phenomenon .SKF 3320A bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 3320A bearings will be arranged timely for we have a large stock of SKF 3320A bearings in HongKong.

SKF 3320A Bearing Specification

Bearing number : 3320A

Size (mm) : 100x215x82.6

Brand : The brand you need

Bore Diameter (mm) : 100

Outer Diameter (mm) : 215

Width (mm) : 82,6

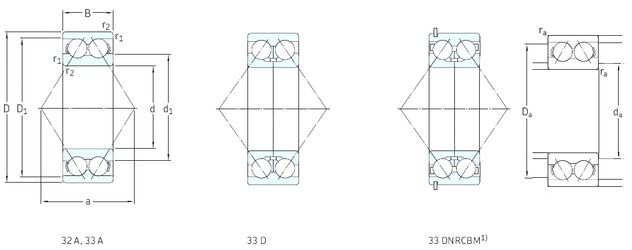

Bearing dimensions and specification in ALIER catalogue:

d – 100 mm

D – 215 mm

B – 82,6 mm

C – 82,6 mm

a – 127 mm

d1 – 136 mm

r1 min. – 3 mm

r2 min. – 3 mm

D1 – 180 mm

da min. – 114 mm

Da max. – 201 mm

ra max. – 2,5 mm

Weight – 13,5 Kg

Basic dynamic load rating (C) – 255 kN

Basic static load rating (C0) – 255 kN

Fatigue load limit (Pu) – 8,65

Reference speed – 2600 r/min

Limiting speed – 2800 r/min
