SKF 3313DNRCBM Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 3313DNRCBM Transparent And Fair Price On Time Delivery

SKF 3313DNRCBM Bearing Description

We supply various of SKF 3313DNRCBM bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 3313DNRCBM bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 3313DNRCBM bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 3313DNRCBM bearings inquire deeply into the running of the machine and friction phenomenon .SKF 3313DNRCBM bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 3313DNRCBM bearings will be arranged timely for we have a large stock of SKF 3313DNRCBM bearings in HongKong.

SKF 3313DNRCBM Bearing Specification

Bearing number : 3313DNRCBM

Size (mm) : 65x140x58.7

Brand : The brand you need

Bore Diameter (mm) : 65

Outer Diameter (mm) : 140

Width (mm) : 58,7

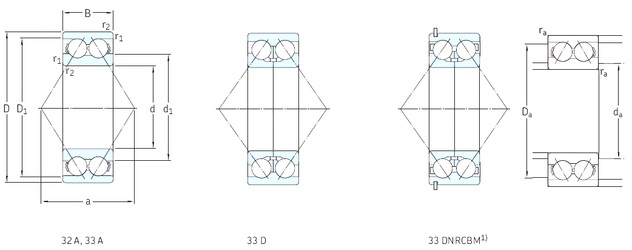

Bearing dimensions and specification in ALIER catalogue:

d – 65 mm

D – 140 mm

B – 58,7 mm

C – 58,7 mm

a – 114 mm

d1 – 95,1 mm

r1 min. – 2,1 mm

r2 min. – 2,1 mm

D1 – 126 mm

da min. – 77 mm

Da max. – 128 mm

ra max. – 2 mm

Weight – 4 Kg

Basic dynamic load rating (C) – 138 kN

Basic static load rating (C0) – 122 kN

Fatigue load limit (Pu) – 5,1

Reference speed – 4300 r/min

Limiting speed – 4500 r/min
