SKF 33122/DF Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 33122/DF Transparent And Fair Price On Time Delivery

SKF 33122/DF Bearing Description

We supply various of SKF 33122/DF bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 33122/DF bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 33122/DF bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 33122/DF bearings inquire deeply into the running of the machine and friction phenomenon .SKF 33122/DF bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 33122/DF bearings will be arranged timely for we have a large stock of SKF 33122/DF bearings in HongKong.

SKF 33122/DF Bearing Specification

Bearing number : 33122/DF

Size (mm) : 110x180x112

Brand : The brand you need

Bore Diameter (mm) : 110

Outer Diameter (mm) : 180

Width (mm) : 112

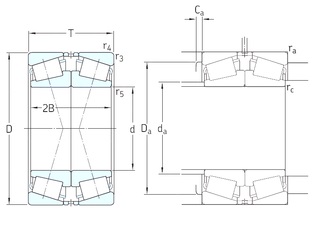

Bearing dimensions and specification in ALIER catalogue:

d – 110 mm

D – 180 mm

T – 112 mm

B – 56 mm

r3 min. – 2 mm

r4 min. – 2 mm

r5 min. – 0,6 mm

2B – 112 mm

Ca max. – 9 mm

da max – 121 mm

Da min – 155 mm

Da max. – 170 mm

ra max. – 2 mm

rc max. – 0,6 mm

Weight – 11,5 Kg

Basic dynamic load rating (C) – 627 kN

Basic static load rating (C0) – 1250 kN

Fatigue load limit (Pu) – 134

Reference speed – 2000 r/min

Limiting speed – 3400 r/min

Calculation factor (e) – 0,43

Calculation factor (Y0) – 1,6

Calculation factor (Y1) – 1,6

Calculation factor (Y2) – 2,3

Tags :  ALIER , 110x180x112
