SKF 32948 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 32948 Transparent And Fair Price On Time Delivery

SKF 32948 Bearing Description

We supply various of SKF 32948 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 32948 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 32948 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 32948 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 32948 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 32948 bearings will be arranged timely for we have a large stock of SKF 32948 bearings in HongKong.

SKF 32948 Bearing Specification

Bearing number : 32948

Size (mm) : 240x320x51

Brand : The brand you need

Bore Diameter (mm) : 240

Outer Diameter (mm) : 320

Width (mm) : 51

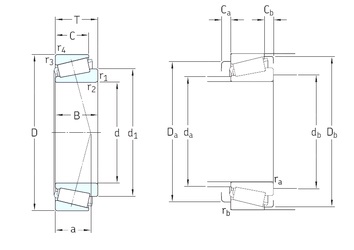

Bearing dimensions and specification in ALIER catalogue:

d – 240 mm

D – 320 mm

T – 51 mm

B – 51 mm

C – 39 mm

a – 64 mm

d1 – 280 mm

r1 min. – 3 mm

r2 min. – 3 mm

r3 min. – 2,5 mm

r4 min. – 2,5 mm

Ca min. – 9 mm

Cb min. – 12 mm

da max – 254 mm

Da min – 294 mm

Da max. – 308 mm

db min – 252 mm

Db min. – 311 mm

ra max. – 3 mm

rb max. – 2,5 mm

Weight – 11 Kg

Basic dynamic load rating (C) – 512 kN

Basic static load rating (C0) – 1080 kN

Fatigue load limit (Pu) – 96,5

Reference speed – 1300 r/min

Limiting speed – 1900 r/min

Calculation factor (e) – 0,46

Calculation factor (Y) – 1,3

Calculation factor (Y0) – 0,7

Tags :  ALIER , 240x320x51
